Wire Assembly Male OBD Connector 16 Pin OBD Plug 12V 24V for Cable Diagnostic Tools
Description of Male OBD Connector 16 Pin OBD Plug 12V 24V
OBD is an on-board diagnostic system, which is mainly used for real-time monitoring of engine running status and the working status of exhaust gas treatment system. If there is abnormal data in the system, it means that the system is not working properly. OBD stores the fault code, and the fault light turns on. And repair personnel can read the fault code through the diagnostic instrument, in order to analyze the cause of the fault.
Not only are diagnostic computers able to read vehicle working data through the OBD interface, but many obD products have been developed by the private sector. From the earliest OBD detection line used to connect with the computer to read data, to the present OBD locator, OBD tire pressure detection, OBD head display, OBD Bluetooth diagnostic instrument, etc., these modules also plug in the car OBD interface that can expand a variety of functions, very simple, plug it in, also need not change the line.
Specification of Male OBD Connector 16 Pin OBD Plug 12V 24V
| Rated voltage | 12V |
| Operating voltage | 12 24V DC |
| Operating current | 13A max |
| Dielectric strength | 1000V, 1 minute |
| Material of the plastic part | PA66 + glass fiber (15%) |
| Material of the contact pins | copper, nickle plated |
| Thickness of nickle plating | 2.5μm |
| Plugging and unplugging life | 2000 cycles min. |
| Pins at the backside | curved pins |
| Contact resistance (per pin) | 0.1 ohm max. |
| Insulation resistance | 100M ohm min. |
| Operating temperature range | −25℃ ~ +85℃ |
| Warranty | 24 months |
Features of Male OBD Connector 16 Pin OBD Plug 12V 24V
1. Avant-garde design, injection molding process, antifreeze and durable.
2. Standard interface, applicable to all the same interfaces.

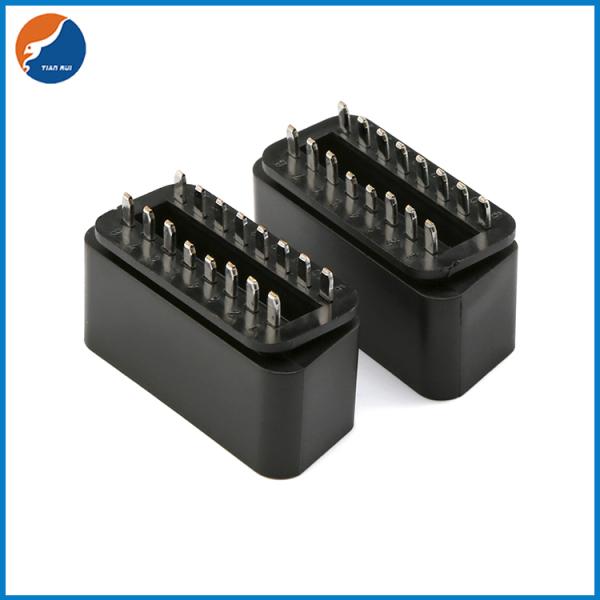

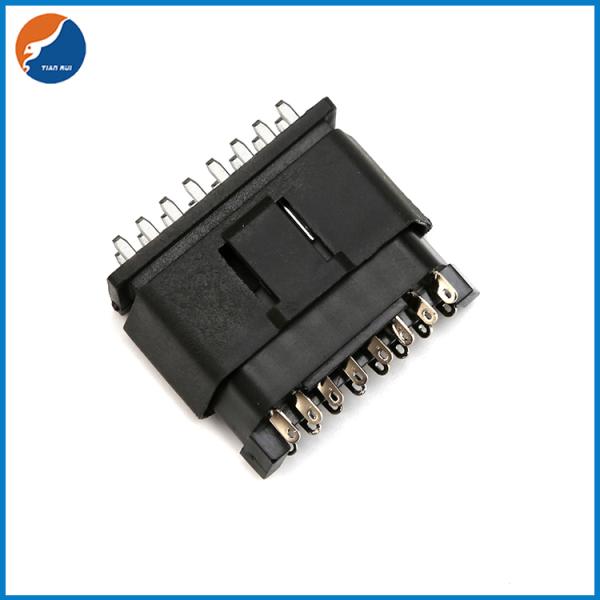

Pictures of Male OBD Connector 16 Pin OBD Plug 12V 24V
More About Male OBD Connector 16 Pin OBD Plug 12V 24V
- Materials of connector and cable comply with UL and ROSH standards;
- We have a variety of OBDII connector for different vehicles. If you need customization and sample service, please contact us.
Application of Male OBD Connector 16 Pin OBD Plug 12V 24V
